SceneDMXcas

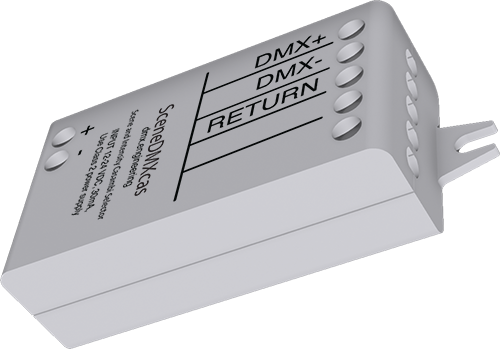

DMX Casambi Scene Selector
SceneDMXcas is a Casambi “Gateway” device designed to utilize a connection to a standard DMX digital master controller to provide a remote selection of pre-defined Casambi Scenes and Scene Intensity. SceneDMXcas is connected between a 12-24 VDC Class 2 power supply, and a DMX master universe.
SceneDMXcas decodes two DMX channels and provides Scene selections by mapping the first DMX channel to up to 20 pre-defined Casambi Scenes. The second DMX channel provides a 0-100% intensity selection for the selected Casambi Scene. The DMX Start Ad-dress for each SceneDMXcas is also user selectable.
SceneDMXcas can be configured with the Casambi app which can be downloaded free of charge from the Apple App Store and Google Play Store.
Different Casambi-enabled products can be used from a simple one luminaire direct control to a complete and full-featured light control system where up to 250 units form automatically an intelligent mesh network.
INPUT
Voltage range: 12-24 VDC, Class 2
No-load input current: 30 mA
DMX-512 OUTPUT
3-wire non-isolated DMX-512
RADIO TRANSCEIVER
Operating frequencies: 2.401-2.483 Ghz
Maximum output power: typ. +0 dBm, +/-3dBm
CONNECTORS
Wire range, solid & stranded: 0.5 – 1.5 mm2
14 – 22 AWG
Wire strip length: .25” (6 – 7 mm)
Tightening force: 0.4 Nm / 2.6 Lb-in
OPERATING CONDITIONS
Ambient temperature, ta: -13…+113°F (-25…+45°C)
Max. case temperature, tc: +167°F (+75°C)
Storage temperature: -13…+167°F (-25…+75°C)
Max. relative humidity: 0…80%, non-cond.
INSTALLATION DETAILS
Connect a Class 2 power supply with 12-24 VDC output voltage to the input connector of Scene10cas. Make sure not to use a constant current LED driver and make sure that the cable polarity is correct. The product has two DMX input connections (+ and -), plus one common (RETURN) ground. Connect the DMX in wires to a DMX master of your choice to give you DMX control of your Casambi Scene lighting network. Add Scenes to the Casambi network, the SceneDMXcas will allow up to 20 Scenes to be selected.
Using the Casambi app, go to Gateways, and press on the SceneDMXcas device, and add it to your Casambi network. Now press on the SceneDMXcas icon, and scroll to the bottom of that screen. Note at the bottom of this screen there are 21 user-programmable parameters—DMX Start Address, and 20 Scene selectors. First select your DMX Start Address, then up to 20 Scenes from your pre-defined Scenes in your Casambi network. Now simply use your DMX master to select the Scene and Intensity, with the first DMX channel selecting the Scene and the second channel defining the Intensity.
SceneDMXcas should not be placed in a metal enclosure, such as metal junction boxes. Metal will attenuate radio signals which are crucial to the operation of the product. If the product will have to install into a junction box, make sure to use a plastic junction box. SceneDMXcas is an ETL Listed Open-Type device which means that it will have to be used together with a Class 2 power supply with a maximum output power of 100 VA. The product can be installed outside of the junction box. Make sure to comply with National Electric Code in installation and when selecting installation wires.
TYPICAL CONNECTION DIAGRAM
* The relay must be protected against inductive over voltage spikes, i.e. it must have a flyback diode. Do not connect a typical PCB relay without the diode.
Dimensions are in mm. * Tc point is on bottom side. 2.2 x 1.2 x 0.7 Inches | 72.6 x 30.0 x 18.0 mm | 0.8 oz ( 23 g )
RANGE DETAILS
The range between two DMXcas or between a DMXcas and a smartphone can vary depending on obstacles and surrounding material. In open-air, the range between two DMXcas’ can be in excess of 200 ft, but if the unit is encapsulated into a metal structure, the range can be only a few feet. Therefore, thorough testing is highly suggested.
Casambi uses mesh network technology so each DMXcas acts also as a repeater. When testing the network, it is important to test that each unit can be controlled from any point of the network covered area.
