casTen
Casambi Enabled Two-Channel 0-10VDC Master with Two Programmable Digital I/O
casTen is a Bluetooth controllable, Casambi enabled, two channel 0-10VDC master dimmer. It can
drive up to 20Ma per channel to 0-10VDC analog enabled lighting devices and fixtures. The casTen
is connected between a 12-24 VDC Class 2 power supply and provides a non-isolated, common
ground to the input ground and all two outputs. casTen can control up to two analog lighting chan-
nels making it an ideal partner for tunable white (TW) applications, with Profiles are available for
standard Casambi color tuning CCT controls.
Two configurable digital, dry contacts (no external voltages!) can each be configured as an input or
output, programmable input OR output is supported with 3-way gang switch operational modes.
Multiple cas10 devices can be used in the same network to control different fixtures, channels or
zones since the two channels of control can be mapped using the Casambi mobile application. Two
channels are 0-100% dimming capable, with a single configurable digital ON/OFF from Dig3.
casCCDrive can be configured with the Casambi app which can be downloaded free of charge from
Apple App Store and Google Play Store. Different Casambi enabled products can be used from a
simple single luminaire direct control to a complete and full featured light control system where
many units automatically form an intelligent mesh network.
INPUT
Voltage range: 12-24 VDC, Class 2
No-load input current: 30 mA
0-l0VDC Outputs
Two identical channels
Each has top and bottom trim for wire length compensation
20mA sink and source per channel
PROFILES
2-channel straight output
Casambi CCT widgets
Each are supported with two in, two out, or one each for
the digital I/O pins
DIGITAL INPUT/OUTPUT
Digital I/Os are digital, dry contacts, do not drive with
voltage. Casambi Profiles allow for the setting of the I/O
direction.
Input: Connect to dry switch to the ground terminal. In
mode an be set to Normal, Inverted, or MultiSwitch to
allow for switch gang operation. Output: Connect to
dry sensor to the ground terminal. In mode an be set to
Normal or Inverted. Caution! This input should not be
powered, and only used as a dry contact between the
two connections.
RADIO TRANSCEIVER
Fanstel BT840 Radio Module
Operating frequencies: 2.401-2.483 Ghz
Maximum output power: typ. +3.4dBm
-103 dBm RX sensitivity in long-range mode
ANTENNA OPTIONS

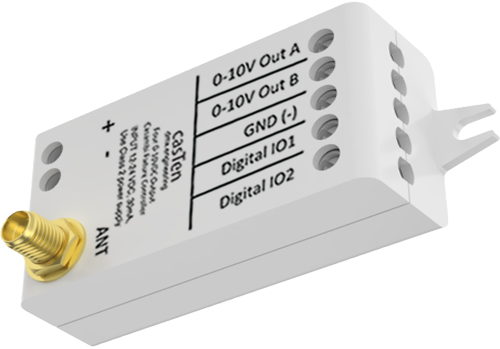

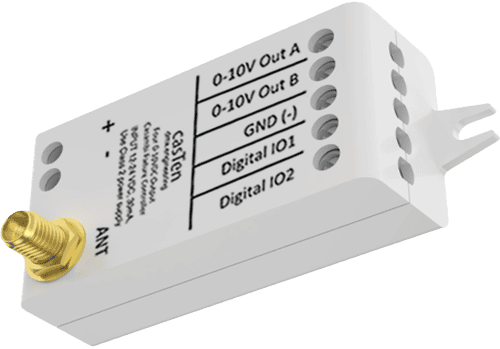

Both internal and external (shown above) antenna mod-
els are available: casTen I – Internal antenna &
casTen E – External antenna
CONNECTORS
Wire range, solid & stranded: 0.5 – 1.5 mm
14 – 22 AWG, Wire strip length: .25” (6 – 7 mm)
Tightening force: 0.4 Nm / 2.6 Lb-in
OPERATING CONDITIONS
Ambient temperature, ta: -13…+113°F (-25…+45°C)
Max. case temperature, tc: +167°F (+75°C)
Storage temperature: -13…+167°F (-25…+75°C)
Max. relative humidity: 0…80%, non-cond.
INSTALLATION DETAILS
Connect a Class 2 power supply with 12-24 VDC output voltage to the input connector of casTen. Make sure not to use a constant current LED driver and make sure that the cable polarity is correct.
The product has four 0-10VDC outputs, plus a common ground. Connect these dimming load wires accordingly. casTen can be configured having different types of outputs, such as 4 channel RGBW (color picker), or 4 individual channels. These configurations can be made by the end user from Casambi App using Profiles. As default, casTen is delivered with straight 4-channel Profile configuration. Top and Bottom Trim values for each chan-nel allow for setting the bottom and top output values based on the Casambi 0-100% (0-255) values to work with fixtures that may not work well with 0V or 10V operation, both can be moved independently.
casTen should not be placed in a metal enclosure, such as metal junction boxes. Metal will attenuate radio signals which are crucial to the operation of the product. If the product will have to installed into a junction box, make sure to use a plastic junction box.
casTen is an ETL Listed Open-Type device which means that it will have to be used together with a Class 2 power supply with maximum output pow-er of 100 VA. The product can be installed outside of junction box. Make sure to comply with National Electric Code in installation and when se-lecting installation wires.

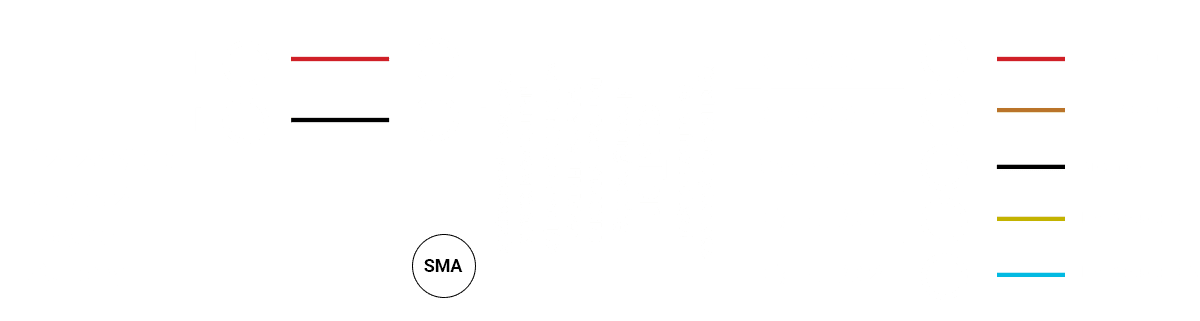

TYPICAL CONNECTION DIAGRAM
Dimensions are in mm. * Tc point is on bottom side. 2.2 x 1.2 x 0.7 Inches | 72.6 x 30.0 x 18.0 mm | 0.8 oz ( 23 g )
RANGE DETAILS
The range between two casTens or between a casTen and a smart phone can vary depending on obstacles and surrounding material. In open air the range between two casTens can be in excess of 200 ft, but if the unit is encapsulated into a metal structure, the range can be only few feet. There-fore, thorough testing is high suggested.
Casambi uses mesh network technology so each casTen acts also as a repeater. When testing the network, it is important to test that each unit can be controlled from any point of the network covered area.
COMPLIANCE STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Warning
Changes or modifications not expressly approved by DMX Engineering and Design LLC could void the user’s authority to operate the equipment.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement for Canada
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment is exempt from the routine RF exposure evaluation requirements of RSS-102. This equipment should be installed and operated with a minimum distance of 20 cm between the antenna and the user or bystanders.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions sui-vantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Ce matériel n’est pas sujet à l’évaluation habituelle d’exposition RF selon RSS102. Ce matériel devrait être installé et exploité en gardant une distance minimale de 20
