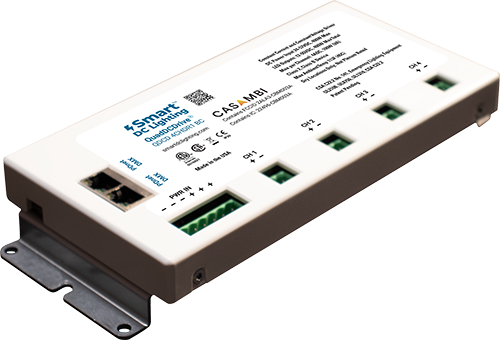

QuadDCDrive®
400W 4-Channel DC to DC LED Driver with Casambi
Overview
QuadDCDrive® delivers performance, beauty, and ambiance with its best-in-class dimming performance, offering smooth, continuous 16-bit dimming down to 0.1%. This Bluetooth-controlled, Casambi-enabled 4-channel, 400W LED driver supports static color temperature, tunable white, RGB, RGBW, constant current, and constant voltage LED luminaires.
Experience the ultimate in design freedom with the programmable QuadDCDrive®, designed to reside in a remote location away from the LED luminaries. The unit is Class B/2 and operates at such low voltage and current, and therefore low power, that it does not present a fire or shock hazard to personnel.
Applications
Lighting systems for theatrical, entertainment, architectural, and energy management applications, including those in alternating current (AC) electrical systems, low voltage direct current (DC) systems, ON Grid/OFF Grid setups, RVs, marine environments, accessory dwelling units (ADUs), spacecraft and more.
Features
- Up to 4 x 100W (VA) individually controlled outputs per QuadDCDrive®.
- 0.1% dim to dark,16-bit dimming, and excellent flicker performance.
- Linear, square law, and user-defined logarithmic dimming curves.
- 48 to 57 VDC input allows for use in DC microgrid applications as well as with AC power supplies.
- Remote Class B/2 power to 12 to 55 VDC luminaires.
- Supports static CCT, tunable white, RGB, RGBW, constant current, and constant voltage LED luminares.
ELECTRICAL SPECIFICATIONS
- Driver Type: Constant current and/or voltage (programmable)
- Number of LED Ouputs: 4 (UL Class B/2)
- Maximum LED Ouput Power: 400W; Up to (4) x 100W (VA) outputs
- Programmable LED Output Current Range: 1A – 4A
- LED Output Type: Programmable in ~100mA increments within the specified current range
- Normal Input Voltage Range (DC): 48V to 57V
- Control Protocols: DMX, Casambi, or Smart DC (consult factory for additional protocols)
- Control Channels: 4 independently configurable as CV or CC, with levels
- Protection Features: Automatic resetting overload and short-circuit protection on Class 2 output
- Standby Power: 1W
OPERATING ENVIRONMENT
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Relative Humidity (Non-Condensing): 0% to 95%
- Not Plenum Rated
CERTIFICATIONS
This product complies with UL2108, UL1310, CSA C22 standards, and CE regulations. It also meets the requirements of federal procurement law under the Buy American Act (FAR 52.225-9) and the Trade Agreements Act (FAR 52.225-11).

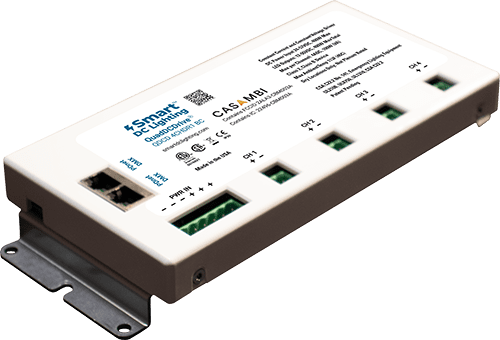

MECHANICAL CONSTRUCTION
DIMENSIONS
9.3″ (236.22 mm) L x 4.0″ (101.6 mm) W x 1.3″ (33.02 mm) H
WEIGHT
0.5 lbs (226.8 g) per unit
